Slim Reverse Osmosis Water Filtration Systems with a Tank

About R.O. Filtration

Reverse osmosis is currently the most advanced yet natural method of water purification. Semipermeable membrane allows only water to pass through and rejects everything else.

R.O. treated water is free from chlorine, heavy metals, other dissolved solids and ions, bacteria and viruses. This water is safe and refreshing, requires no boiling and is a good choice for all kind of use including newborn baby feeding.

Make no mistake, this osmosis process is as much natural as it can be since it’s essentially the same as the one in every living cell on Earth. Cell membrane allows only what it needs to get through and rejects everything foreign.

These days the human genius reproduced this natural process in a highly sophisticated nanotechnology device right at your sink.

No magic, no unproven claims – just pure science! Reverse osmosis is used everywhere when real clean water is needed, not claims: from pharmaceutical production to space station water supply, from multi-million population area municipal water desalination plants to marine ship rescue kits.

What Makes It Special

R.O. filtration system that's perfectly engineered, environmentally friendly and remarkably useful

R.O. high rejection rate membrane of genuine Toray sheet made in Japan.

Slim and modern space-saving design, premium look and feel.

Zero or low noise.

Quick-change encapsulated filter and membrane elements for easier maintenance.

Zero or low energy consumption.

Premium designer faucet.

Factory-preinstalled filters and membrane, worldwide tee-adapter valve, push-to-connect quick fittings, etc. for faster and easier setup and convenient use.

3.2, 4 or 5 gallons storage tank options.

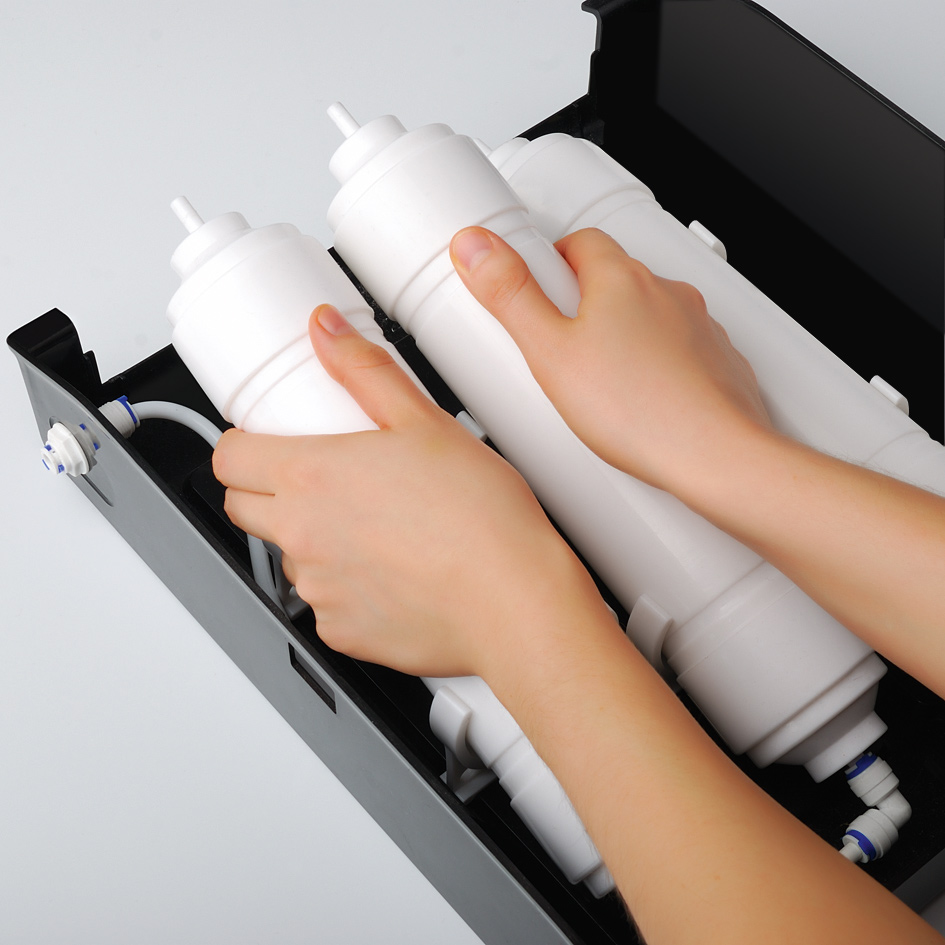

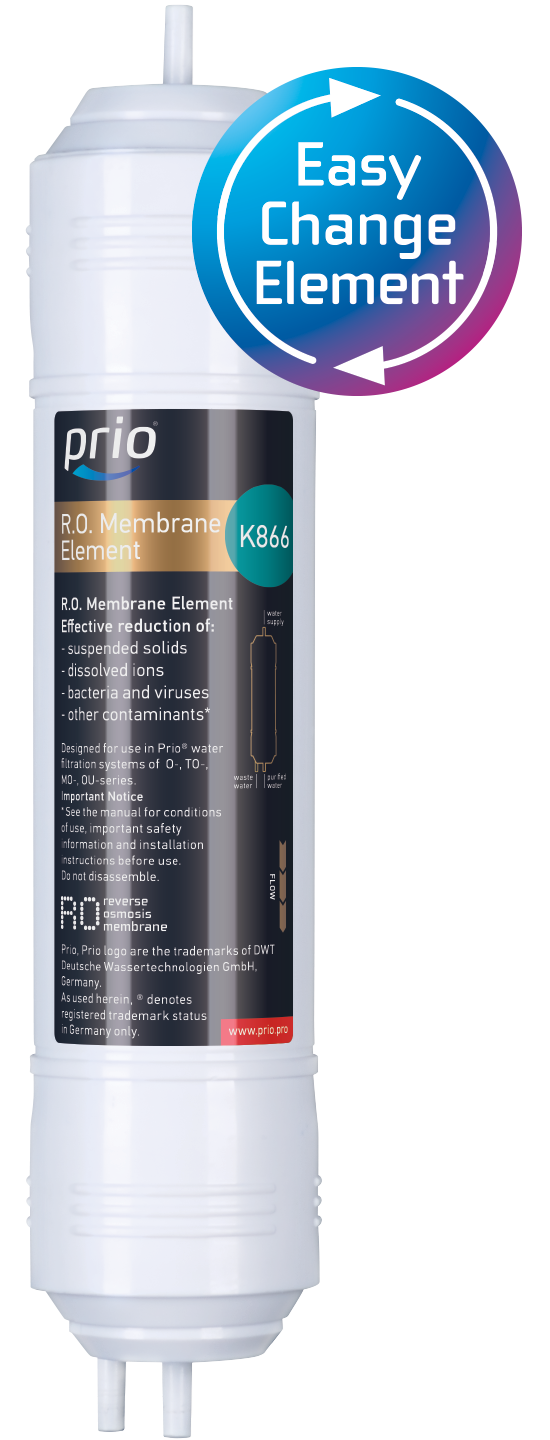

Quick-change encapsulated membrane element

Multi-Stage Filtration System

5-micron sediment poly block pre-filter¹ to filter suspended particles such as mud, sand, rust, etc.
Carbon block to reduce free chlorine, chloramines, chlorine taste and odor.

75gpd R.O. membrane element to reduce dissolved solids, metal ions, bacteria and viruses, and other suspended particles as small as 0.0001 micron.
Two-stage water conditioning combo post-filter.

K871¹

5 μm Sediment Poly Block Pre-Filter

Effective reduction of:

rust, mud, sand and sediment
other contaminants*

K870

Coconut Carbon Block Pre-Filter

Effective reduction of:

dirts, sand and sediment
taste and odor, including chlorine taste and odor
other contaminants*

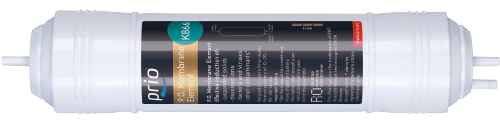

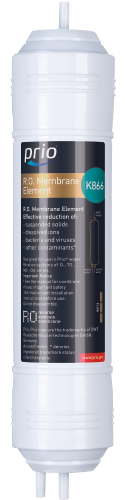

K866

75gpd R.O. Membrane Element

Effective reduction of:

suspended solids
dissolved ions
bacteria and viruses
other contaminants*

K880

Coconut Carbon Block and Remineralization Water Conditioning Post-Filter

improves taste and removes odor, remineralizes water*

Set Includes:

Multi-Stage Filtration Unit with R.O. Membrane and Built-in Booster Pump²
Storage Tank
Designer Faucet
Installation Kit

¹ For models without pump only.
² For models with pump only.

What's in the Box

(1) Multi-stage filtration unit with installed filters

(1) Storage tank with tank valve

(1) Universal worldwide adapter ball valve (G1/2” - G3/8” - UNEF 9/16”-24 - JG 1/4”)

(1) Teflon tape roll

(1) Faucet

(1) Drain saddle

(1) Wrench

(1) ¼” union check valve

(2) ¼” union tee fitting

(26 ft/ 8 m) Water tubing ¼”

(1) Power supply (for models with pump)

User’s guide

Technical Data

Operating Requirements:

Minimum supply water pressure: 30 psi (0.2 MPa); 7.25 psi (0.05 MPa)⁵
Maximum supply water pressure: 80 psi (0.55 MPa)
Minimum water temperature: 41 °F (5 °C)
Optimal water temperature: 59—77 °F (15—25 °C)
Maximum water temperature: 95 °F (35 °C) / up to 105 °F (40.5 °C) short-term
Ambient air temperature: 41—105 °F (5—40.5 °C)
Water source: tap water supply, chlorinated or non-chlorinated, bacteriologically safe
Supply water pH range: 4.0—11.0
Supply water turbidity: < 1 NTU
Supply water components: Hardness (CaCO₃) <180 mg/L (<10.5 gpg), Iron <0.1 mg/L, Manganese <0.05 mg/L, Hydrogen Sulfide 0.00 mg/L
Maximum supply water TDS: 1000 ppm
Indoor use only.
Tubing: ¼”
Electrical input⁵: AC 100—240V 50/60 Hz
Electrical plug⁵: US Type A / Europlug CEE 7/16

Performance:

Performance of the appliance such as filtered water delivery rate, rejection rate, etc. is highly dependent on local conditions (inlet water pressure, temperature, TDS and degree of contamination, tank air pressure, etc.) and R.O. system use pattern. Actual performance may vary.

Filtered water production rating: 75 gpd (270 lpd) maximum
Filtered water delivery rate (from the tank), typical: 0.27—0.74 gpm (1—2.8 l/min)
Membrane rejection rate¹, typical: >90%
Recovery rate (system efficiency²), typical: 15%
Drain water flow restrictor: 300 cc (ml/min) nominal, up to 360 cc in working mode.
Tank Storage Capacity (Total Volume)³: up to 2.0G (3.2G); or up to 2.5G (4.0G)
Tank full refill time⁴, typical: 70—120 min; 35—45 min⁵

Weight and Size:

R.O. Filtration Unit:

Size (WDH), body only, excluding protrusions: 13.46 x 3.35 x 14.80” (342 x 85 x 376 mm)

Weight, without water and tubing: 8.8 lbs (4.0 kg); 11.9 lbs (5.4 kg)⁵

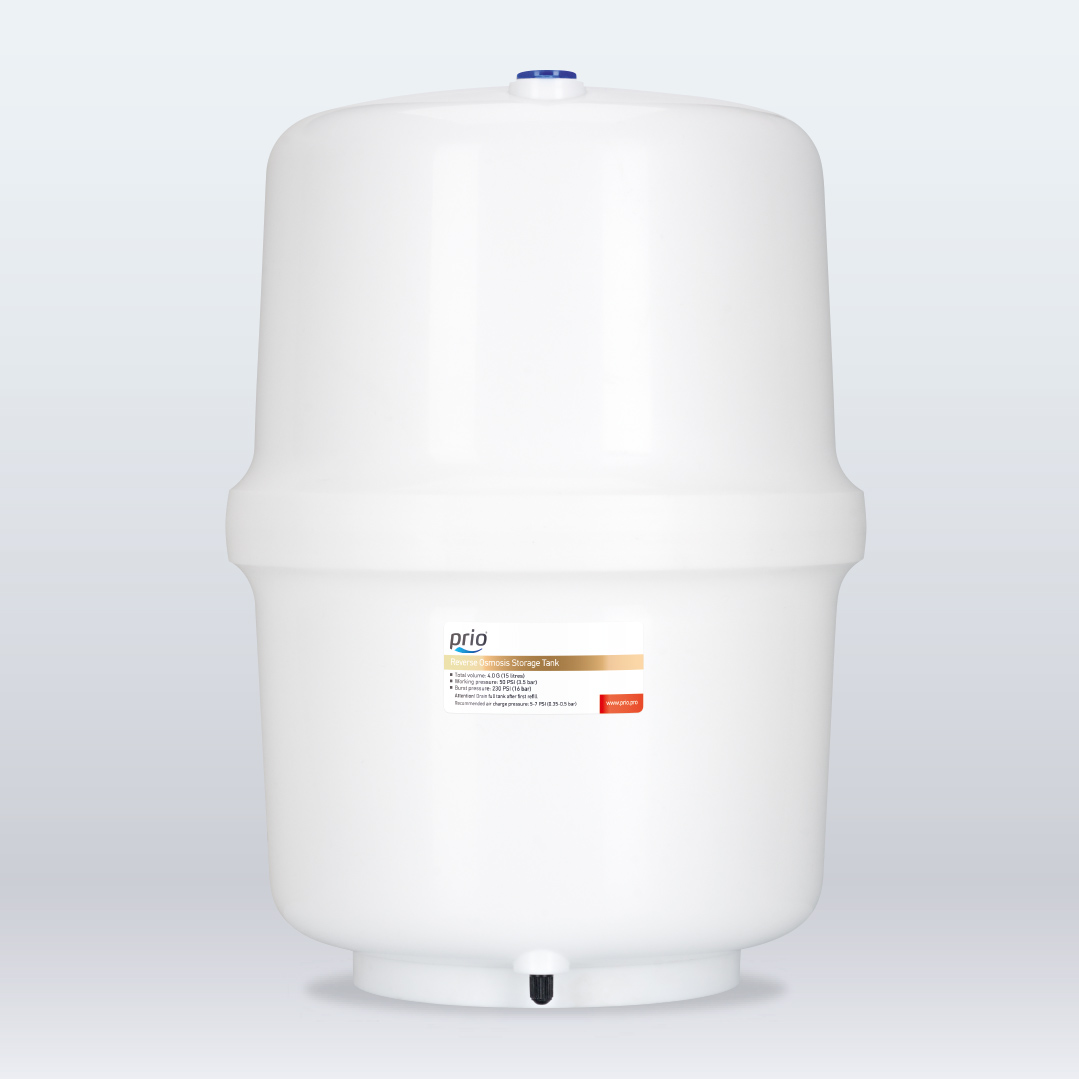

Storage tank:

Tank model No. X842G; X852G:

Storage Capacity (Total Volume): up to 2.0G (3.2G); up to 2.5G (4.0G)

Size (WxDxH), body only, excluding protrusions: 9.8 x 9.8 x 13.6” (250 x 250 x 347 mm); 10.55 x 10.55 x 14.90” (268 x 268 x 378 mm)

Weight, without water and tubing: 4.7 lbs (2.1 kg); 6.0 lbs (2.7 kg)

Certification

Fully CE certified and conforms to Directives and Standards EU 2015/1787, 98/83/EC, 2014/30/EU, 2014/35/EU, EN13443-2:2005+A1:2007, EN14898:2006+A1:2007, EN14652:2005+A1:2007, etc.

Warranty:

1 year worldwide limited warranty (+ local regulations if applicable)

¹ For all dissolved solids combined as measured by TDS or conductivity meter.

² Efficiency rating means the percentage of the influent water to the system that is available to the user as reverse osmosis treated water under operating conditions that approximate typical daily usage.

³ Depending on SKU.

⁴ Depending on supply water pressure and tank's volume.

⁵ For models with pump.

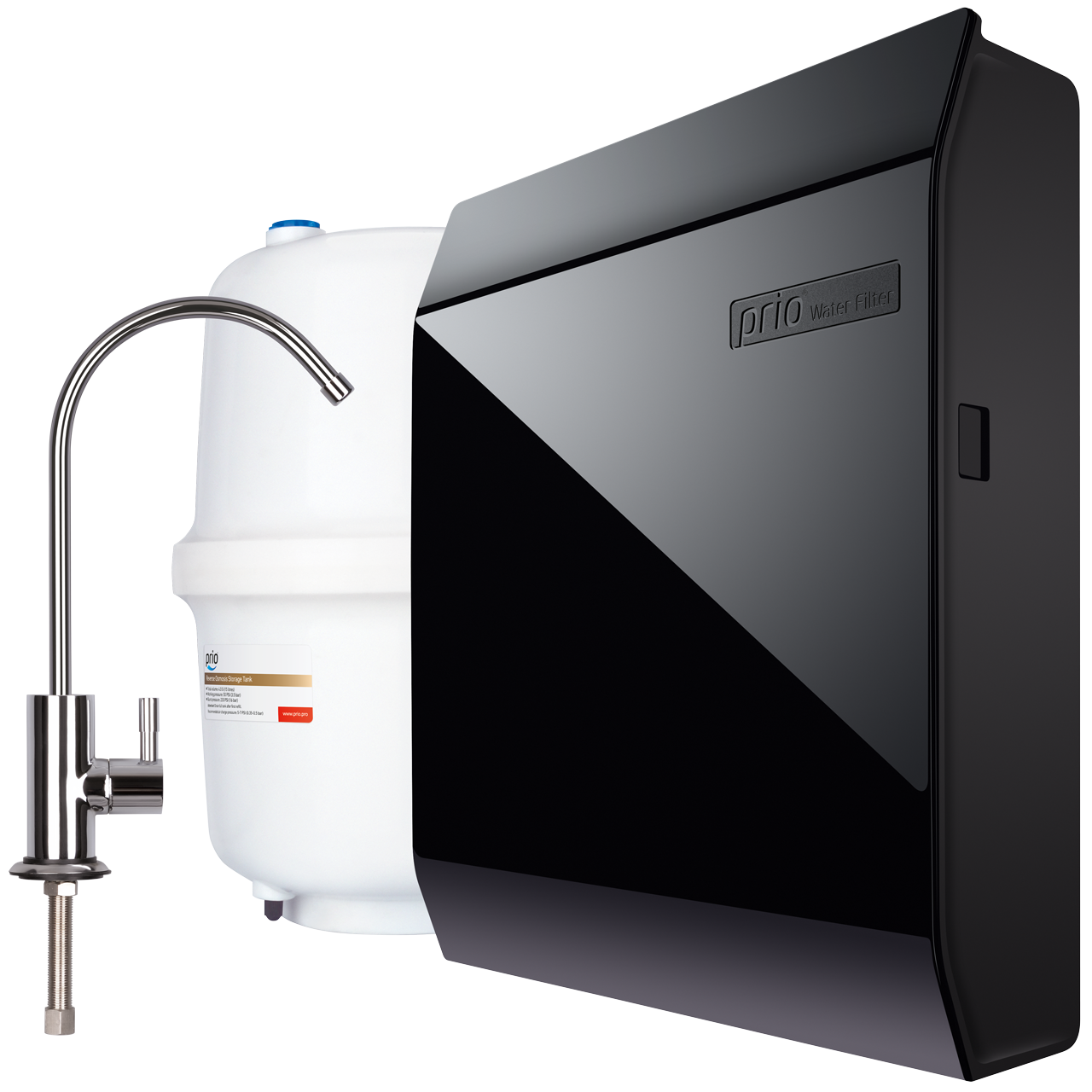

Expert MO530 / MO580

Slim Undersink Reverse Osmosis Water Filtration Systems with a Storage Tank

About R.O. Filtration

Beyond Bottled Water Quality

Make Your Contribution to Saving Our Planet

How It Works

What Makes It Special

Like New Every Day!

Built-in Booster Pump

Useful Features

Get a Second Pure Water Line Option for Free

If you’re still using bottled water for drinking today, you’ll be making a smart investment that saves you money in the long run and is better for the environment.
Get better than bottled water quality without the bottle!
